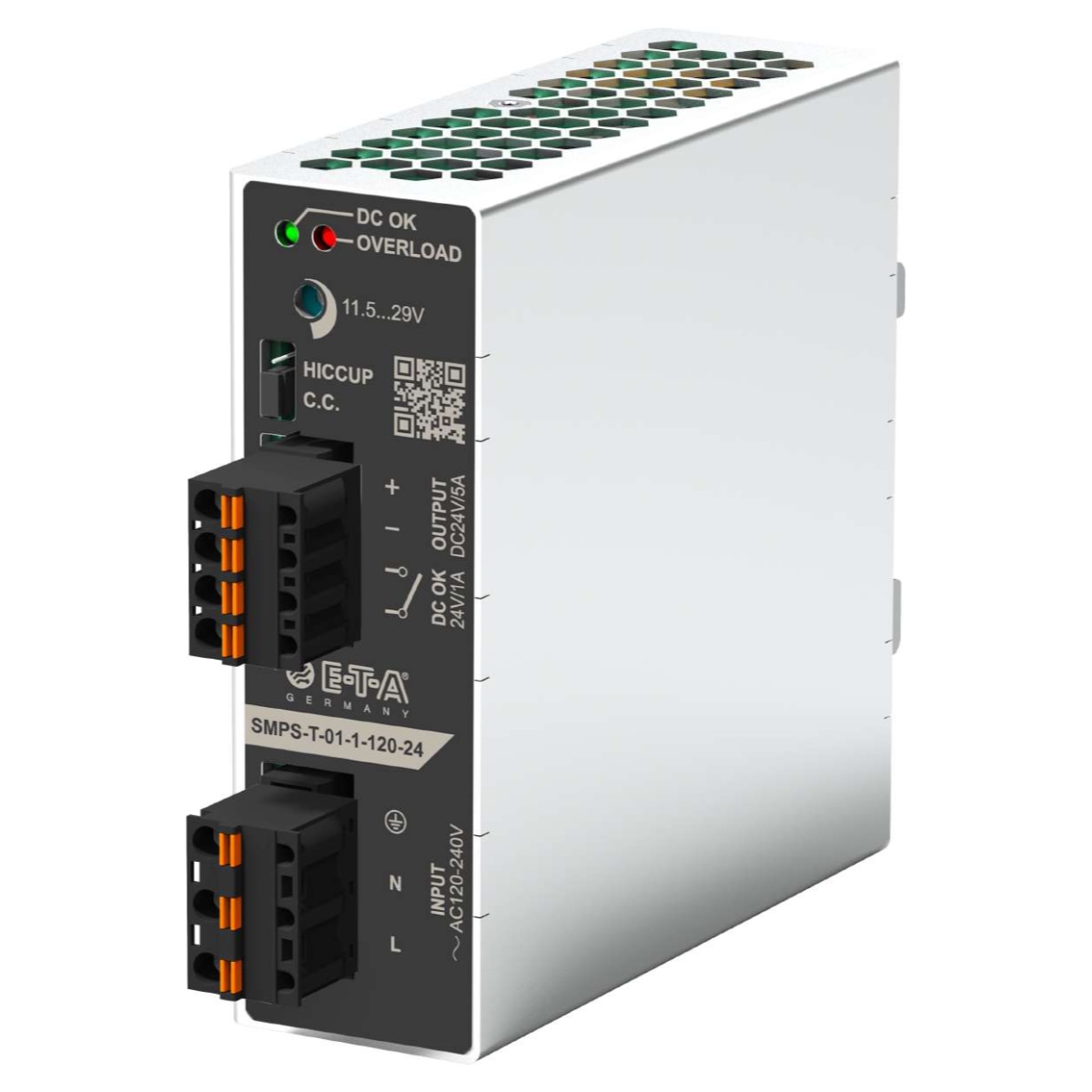

E-T-A Single Phase Switch Mode Power Supply, DIN Rail Mounting, Push-in Terminals, Single Phase, 120 Watt, DC24V, 5A
Manufacturer:
E-T-A
Series Type:
SMPS-T Series
Rated Input Voltage:
AC 230 V
Output Power Rating:
120 W
Rated Output Current:
5A
Voltage Setting Range:
DC 11.5…29 V
Holding Time / Exposure Time:
20 / 30 ms
Mounting Dimensions (WxHxD):
35 x 103 x 134.15 mm (version with terminals)
Mounting Position:
Wall mounting with input terminals pointing downwards (see dimensions)
Material:
Aluminium
Mounting Data:
Fixation on DIN rail (TS35/7.5 or TS35/15)
Convection Cooling:
Normal air convection, distances: see drawing
Ambient Temperature Rating (°C):
-35 to + 70
IP Rating:
IP20
Material Data
Weight:
450 grams
