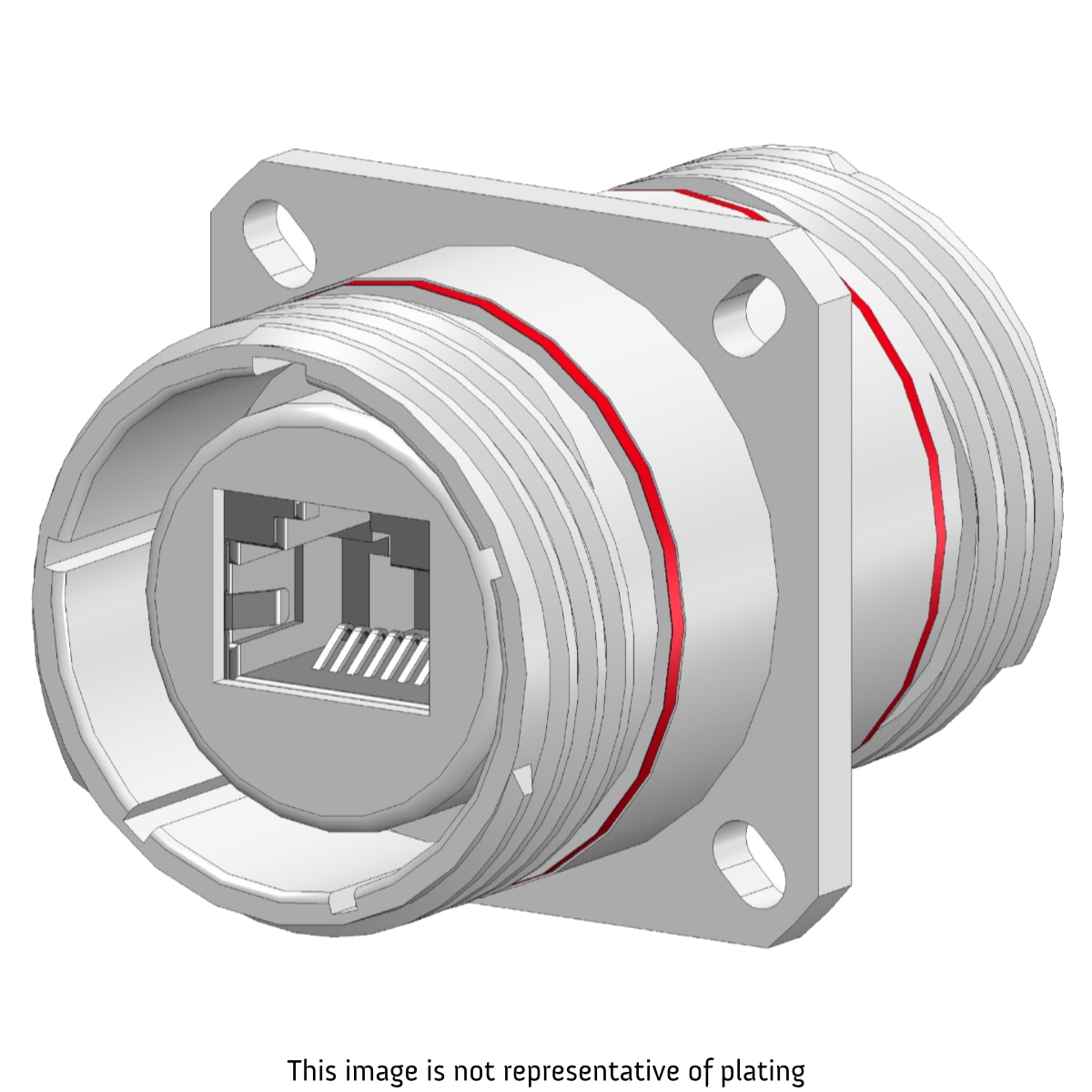

EMCA Connector Solutions RJ45 CAT5e Bulkhead Feedthrough, Square Flange Receptacle, Shell Size 19, Electroless Nickel Plating, Keyway 'N', Orientation '0' - X1-9850-19-5 N 0

Product may vary from image shown

EMCA Connector Solutions
Contact us for a price
X1 9850 19 5 N 0
Check for latest availability
Enquire now!

EMCA Connector Solutions RJ45 CAT5e Bulkhead Feedthrough, Square Flange Receptacle, Shell Size 19, Electroless Nickel Plating, Keyway 'N', Orientation '0'.

Manufacturer:
EMCA Connector Solutions
Connector Shell Style:
Square Flange Receptacle
Connector Series:
D38999 Series III
Shell Size:
19
Finish:
Electroless Nickel
Keyway Polarization:
N
RJ45 Orientation:
0
Electrically Conductive:
Yes
Voltage Rating (AC):
35V
Voltage Rating (DC):
50V
Temperature:
-40°C to +120°C
Mating Cycles:
>500
Data Transmission:
1000 Mbit/s (100Mhz)
Pin Mapping:
1:1
RJ45 Housing:
Thermoplastic UL94 V-0
RJ45 Shield Plating:
Tin or Nickel
RJ45 Shield:
Copper Alloy

Commercial Data

Country of Origin
:
Germany
Tariff Number:
85369010
RoHS Compliant:
Yes
