Product may vary from image shown

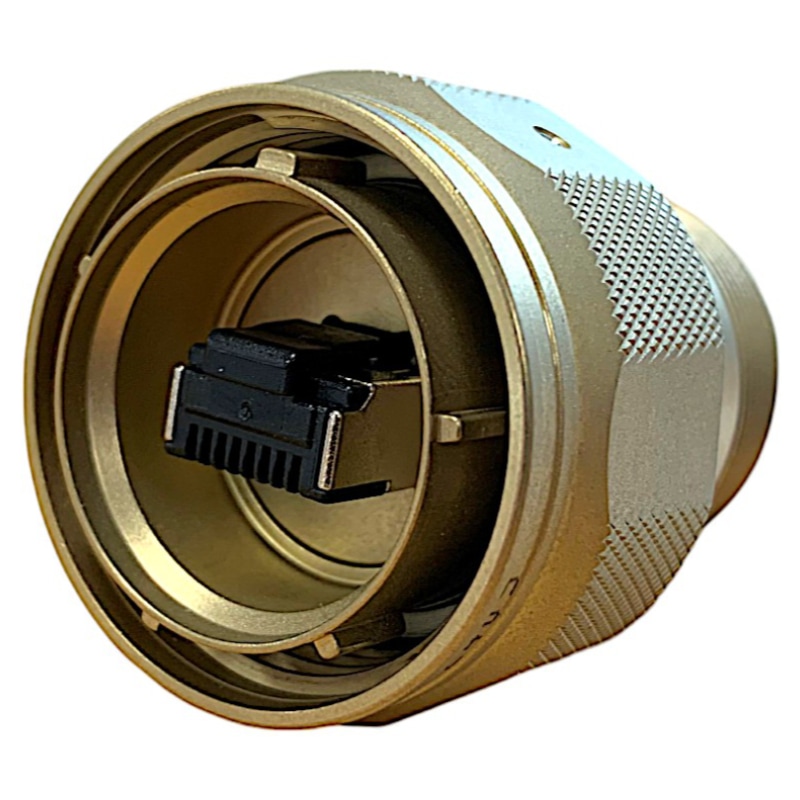

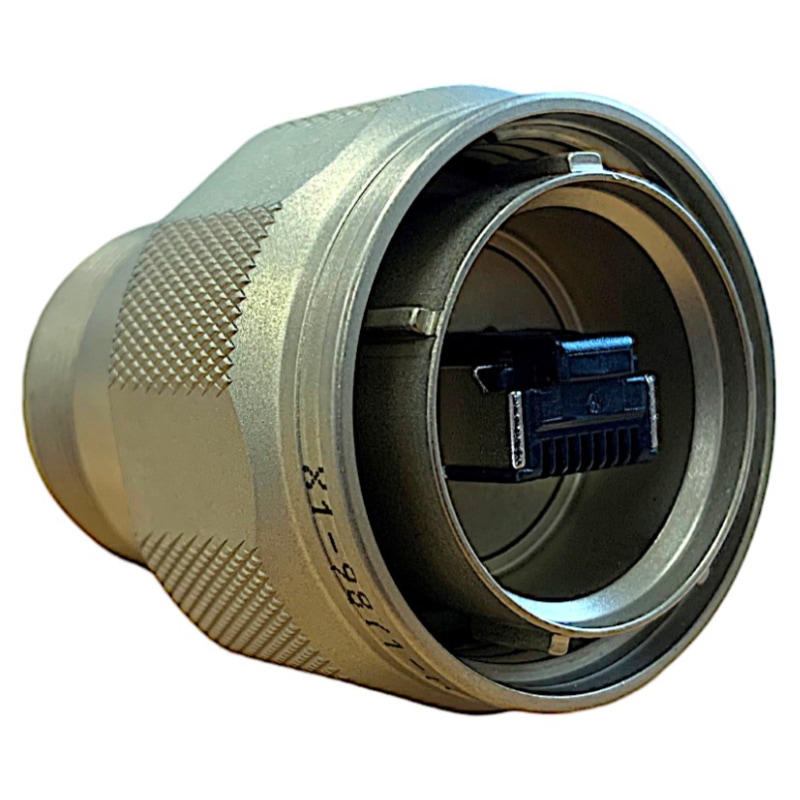

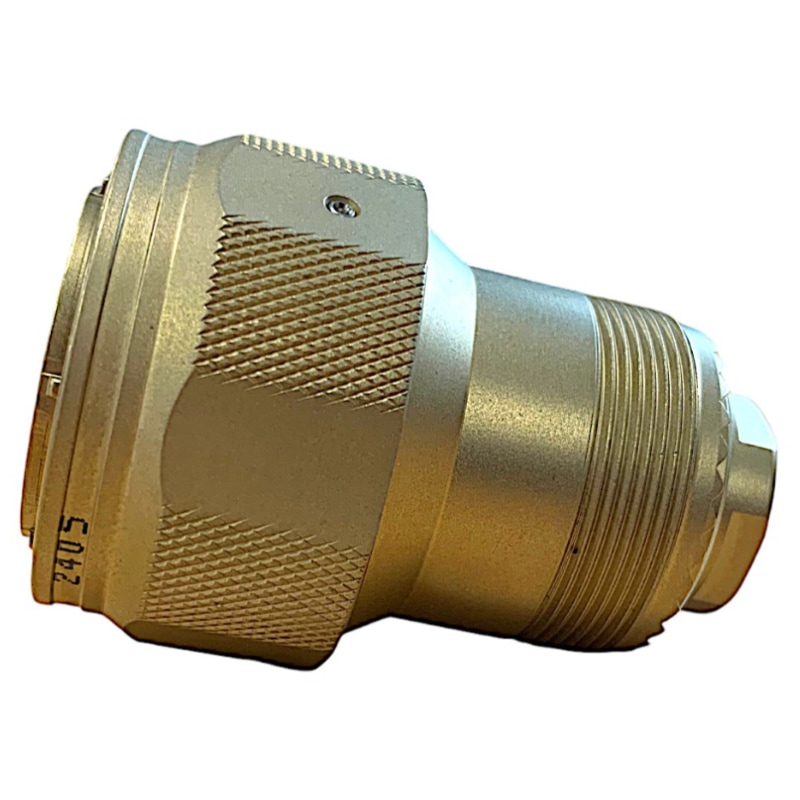

EMCA Connector Solutions RJ45 CAT6A Plug Connector, Shell Size 19, Marine Bronze, Keyway 'N'.
Manufacturer:
EMCA Connector Solutions
Connector Shell Style:
Plug Connector
Connector Series:
D38999 Series III
Shell Size:
19
Finish:
Marine Bronze
Keyway Polarization:
N
RJ45 Orientation:
Orientation selected during assembly
Electrically Conductive:
Yes
Voltage Rating (AC):
35V
Voltage Rating (DC):
50V
Temperature:
-40°C to +120°C
Mating Cycles:
>500
Data Transmission:
10 Gbit/s (500Mhz)
Pin Mapping:
1:1
RJ45 Housing:
Thermoplastic UL94 V-0
RJ45 Shield Plating:
Tin or Nickel
RJ45 Shield:
Copper Alloy
Alternative Reference:
PC4D0002, PC4D0024, PC4D0018, PC4D0023, RJFTV6
