EMCA Connector Solutions RJ45 CAT6A Feedthrough, Square Flange Receptacle, Shell Size 19, Stainless Steel, Keyway 'N', Orientation '0' - X1-9888-19-1 N 0

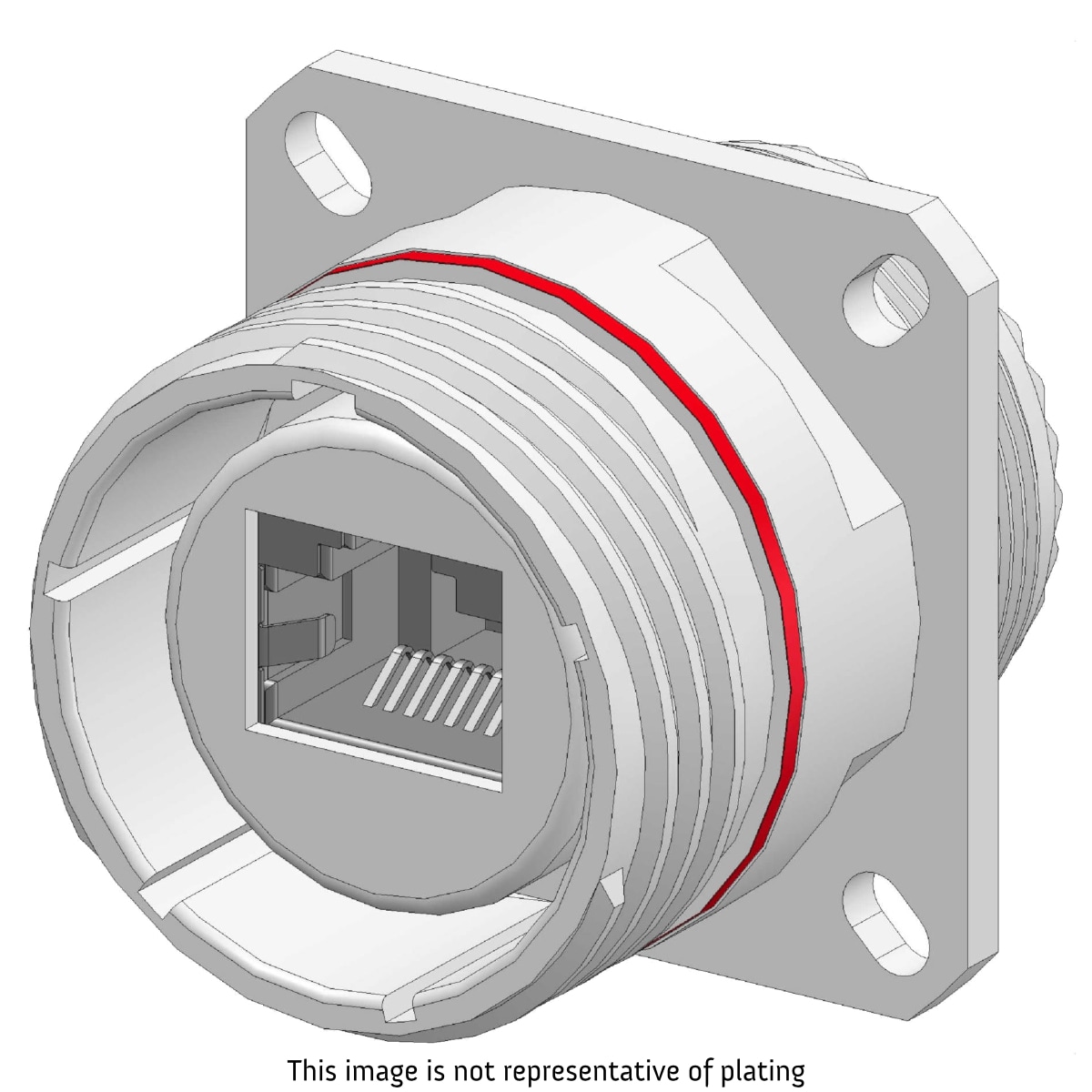

Product may vary from image shown

EMCA Connector Solutions
Contact us for a price
X1 9888 19 1 N 0
Check for latest availability
Enquire now!

EMCA Connector Solutions RJ45 CAT6A Feedthrough, Square Flange Receptacle, Shell Size 19, Stainless Steel, Keyway 'N', Orientation '0'.

Manufacturer:
EMCA Connector Solutions
Connector Shell Style:
Square Flange Receptacle
Connector Series:
D38999 Series III
Shell Size:
19
Finish:
Stainless Steel
Keyway Polarization:
N
RJ45 Orientation:
0
Electrically Conductive:
Yes
Voltage Rating (AC):
35V
Voltage Rating (DC):
50V
Temperature:
-40°C to +120°C
Mating Cycles:
>500
Data Transmission:
10 Gbit/s (500Mhz)
Pin Mapping:
1:1
RJ45 Housing:
Thermoplastic UL94 V-0
RJ45 Shield Plating:
Tin or Nickel
RJ45 Shield:
Copper Alloy
Alternative Reference:
PC4B0022, PC4B0029, PC4B0002, RJFTV2

Commercial Data

Country of Origin
:
Germany
Tariff Number:
85369010
RoHS Compliant:
Yes
